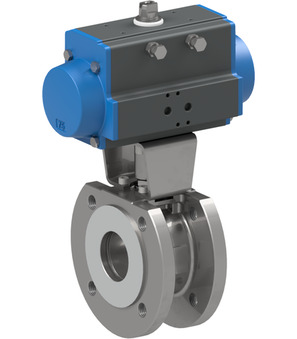

Flanged ball valve with pneumatic actuator Series BADA; Flange PN16; Body, Ball AISI 316; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 100mm; Length 152mm; Actuator PAS1255
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic
Country of origin: Italy
Weight: 38.178 Kg
Short Itemnumber: BADA100SSTVS0ABS54C00103C003326EB0X01
BADA-100-SSTV-S0
Flanged ball valve with pneumatic actuator Series BADA; Flange PN16; Body, Ball AISI 316; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 100mm; Length 152mm; Actuator PAS1255
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic
| dimension | |
|---|---|
| Attachment interface VDI/VDE 3845 | 80x30x20 |
| Attachment interface 2 VDI/VDE 3845 | 80x30x30 |
| Valve interface Namur | 1/4" |
| DN | 100 mm |
| Length | 152 mm |
| Designs | |
| Connector size | 22 |
| Switch type | Crouzet 831613 |
| design | |
| Design | Standard |
| Electrical key figures | |
| Voltage | 24VDC / 48V/50-60Hz |
| Switching capacity | 4A/250VAC-1A/24VDC |
| pressure | |
| Pressure range | 0...16 bar |
| materials | |
| Contact material | Silver-nickel |
| Material of case | Plastic |
| characteristics | |
| Coil | C001 |
| Actuator | PAS1255 |
| Actuator 2 | PAS |
