Flanged ball valve with pneumatic actuator Series BADA Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - pneumatically operated
  5. Flanged ball valve with pneumatic actuator Series BADA

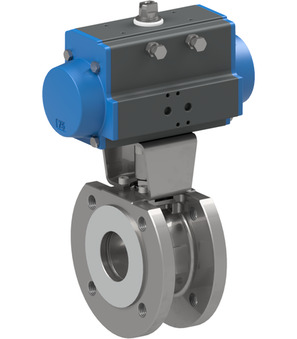

  6. BADA-080-SSTV-S0-ABS53-C001-03-C002-31-6-EB0X01
BADA-080-SSTV-S0-ABS53-C001-03-C002-31-6-EB0X01

BADA-080-SSTV-S0-ABS53-C001-03-C002-31-6-EB0X01

BADA-080-SSTV-S0
Flanged ball valve with pneumatic actuator Series BADA; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 80mm; Length 122mm; Actuator PAS1255
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic

Intrastat No.: 84818081
Country of origin: Italy
Weight: 30.288 Kg
Short Itemnumber: BADA080SSTVS0ABS53C00103C002316EB0X01
https://www.stasto.pl/web/image/product.template/182955/image_1920?unique=d9024cc

BADA-080-SSTV-S0
flanged ball valve with pneumatic actuator series BADA; flange PN16; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 80mm; length 122mm; actuator PAS1255
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

9.471,00 zł 9471.0 PLN 9.471,00 zł

cena na zapytanie

  • Connection
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Diameter Hose
  • Dimension
  • Function
  • Direction of flow control
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Voltage type
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Body
  • Coil
  • Actuator
  • Actuator 2
  • Max. inlet pressure
  • Filter element
  • Suitable to series
  • Flow rate at 6.3bar/Δp=1bar
  • Screen

This combination does not exist.

Availability:
Contact Us

Share

dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Valve interface Namur 1/4"
DN 80 mm
Length 122 mm
Designs
Connector size 22
Switch type Crouzet 831613
design
Design Standard
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
Switching capacity 4A/250VAC-1A/24VDC
pressure
Pressure range 0...16 bar
materials
Contact material Silver-nickel
Material of case Plastic
characteristics
Coil C001
Actuator PAS1255
