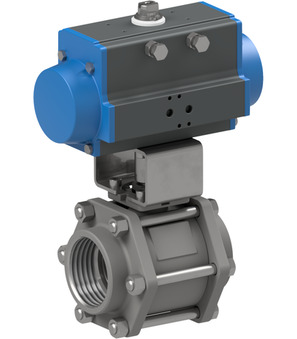

Ball valve with pneumatic rotary actuator 85 double-acting, body and ball 1.4401, thread i/i ATEX antistatic connection RP3"
Technical specifications
| Brand | STASTO |
|---|
| Brand | STASTO |
BA033-30-L-A
x 1.0 Pcs
Ball valve made of stainless steel Series BA033-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0…16bar; Length 180mm
PAD085
x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
