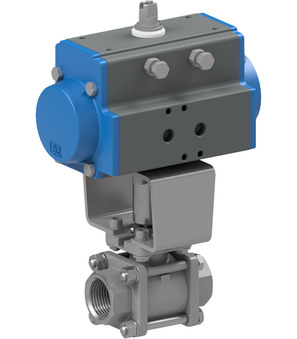

Ball valve with pneumatic actuator BAC1-009-SSTV-T0

Name: Ball valve with pneumatic actuator BAC1-009-SSTV-T0
Brand: STASTO
SKU: BAC1-009-SSTV-T0
Price: 3860.1 PLN
Availability: InStock

ball valve with pneumatic actuator series BAC1; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAS1005; NO variant

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.46 Kg
Short Itemnumber: BAC1009SSTVT0

3.860,10 zł 3860.1 PLN 3.860,10 zł

Female thread
- RP 2"
DN
- 50 mm
Length
- 136 mm
Pressure range
- 0...25 bar
Actuator
- PAS1005

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 2"
DN	50 mm
Length	136 mm
pressure
Pressure range	0...25 bar
characteristics
Actuator	PAS1005

710000-2" x 1.0

Ball valve made of stainless steel 710000-2"

Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

RI3034 x 1.0
