Ball valve with pneumatic actuator Series BAC1 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - pneumatically operated
  5. Ball valve with pneumatic actuator Series BAC1
  6. BAC1-009-CITV-D0-EB0X05

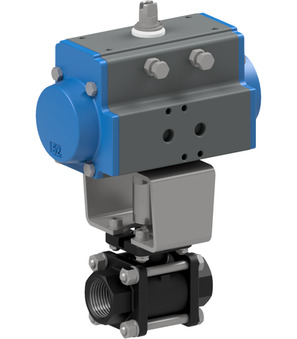

BAC1-009-CITV-D0-EB0X05

BAC1-009-CITV-D0-EB0X05

BAC1-009-CITV-D0
ball valve with pneumatic actuator series BAC1; female thread; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAD075
EB0X05
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831391 - ATEX; contact material Silber-Nickel; material of case plastic

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.818 Kg
Short Itemnumber: BAC1009CITVD0EB0X05
https://www.stasto.pl/web/image/product.template/232447/image_1920?unique=94b97ec

BAC1-009-CITV-D0
ball valve with pneumatic actuator series BAC1; female thread; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAD075
EB0X05
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831391 - ATEX; contact material Silber-Nickel; material of case plastic

4.197,60 zł 4197.6 PLN 4.197,60 zł

cena na zapytanie

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Female thread RP 2"
DN 50 mm
Length 136 mm
Designs
Switch type Crouzet 831391 - ATEX
design
Design ATEX
Electrical key figures
Switching capacity 4A/250VAC-1A/24VDC
pressure
Pressure range 0...25 bar
materials
Contact material Silver-nickel
Material of case Plastic
characteristics
Actuator PAD075
