BAC1-006-CITV-D0-ABS51-C001-03-C002-31-6-EB0X01

BAC1-006-CITV-D0-ABS51-C001-03-C002-31-6-EB0X01

BAC1-006-CITV-D0

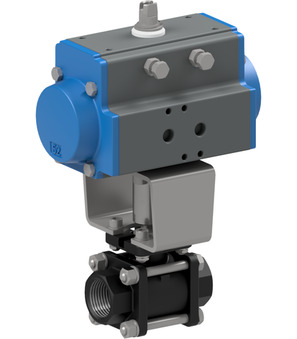

Ball valve with pneumatic rotary actuator Series BAC1; Internal thread; Housing Steel; Ball 1.4301; Seals PTFE/FKM; Double-acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 1"; Nominal diameter 25mm; Print area 0-40bar; Installation length 92mm; Drive PAD052
ABS51
Mounted control valve Series ABS; NAMUR; Silencer; Standard coil C001; Plug width 22mm; 5/2-way NAMUR solenoid valve (NM52W1S-PR); Drive PAD052-270
C001-03
Solenoid coil Type C001; Plug width 22mm; Tension 24VDC / 48V/50-60Hz
C002-31-6
Cable plug; Plug width 22mm; Standard; Tension 0-250VAC/DC
EB0X01
Mounted limit switch box; IP65; 2 Microswitch; suitable for Drives PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Housing material Plastic

Kugelhahn mit Druckluftdrehantrieb Serie BAC1
Kugelhahn mit Druckluftdrehantrieb Serie BAC1
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 3.468 Kg
Short Itemnumber: BAC1006CITVD0ABS51C00103C002316EB0X01
https://www.stasto.pl/web/image/product.template/221081/image_1920?unique=8837849

BAC1-006-CITV-D0
Ball valve with pneumatic rotary actuator Series BAC1; Internal thread; Housing Steel; Ball 1.4301; Seals PTFE/FKM; Double-acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 1"; Nominal diameter 25mm; Print area 0-40bar; Installation length 92mm; Drive PAD052
ABS51
Mounted control valve Series ABS; NAMUR; Silencer; Standard coil C001; Plug width 22mm; 5/2-way NAMUR solenoid valve (NM52W1S-PR); Drive PAD052-270
C001-03
Solenoid coil Type C001; Plug width 22mm; Tension 24VDC / 48V/50-60Hz
C002-31-6
Cable plug; Plug width 22mm; Standard; Tension 0-250VAC/DC
EB0X01
Mounted limit switch box; IP65; 2 Microswitch; suitable for Drives PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Housing material Plastic

2.900,00 zł 2900.0 PLN 2.900,00 zł

cena na zapytanie

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 1"
DN 25 mm
Length 92 mm
All specifications (9)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
Female thread RP 1"
DN 25 mm
Length 92 mm
Voltage 24VDC / 48V/50-60Hz
Design Standard
Switch type Crouzet 831613
Contact material Silver-nickel
Material of case Plastic

BAC1-006-CITV-D0-ABS51-C001-03-C002-31-6-EB0X01

Documents

16 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

5

Declarations of Conformity

5

CAD / 3D

5
Danish / Dansk
ZIP

Data Sheets

5

CAD / 3D

5
German / Deutsch
ZIP

Data Sheets

5

Assembly and Operating Instructions

1

Declarations of Conformity

5

CAD / 3D

5
Greek / Ελληνικά
ZIP

Data Sheets

5

CAD / 3D

5
English
ZIP

Data Sheets

5

Assembly and Operating Instructions

1

Declarations of Conformity

5

CAD / 3D

5
Spanish / Español
ZIP

Data Sheets

5

CAD / 3D

5
Finnish / Suomi
ZIP

Data Sheets

5

CAD / 3D

5
French / Français
ZIP

Data Sheets

5

CAD / 3D

5
Croatian / hrvatski jezik
ZIP

Data Sheets

5

CAD / 3D

5
Hungarian / Magyar
ZIP

Data Sheets

5

Declarations of Conformity

5

CAD / 3D

5
Italian / Italiano
ZIP

Data Sheets

5

CAD / 3D

5
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

5

CAD / 3D

5
Dutch / Nederlands
ZIP

Data Sheets

5

CAD / 3D

5
Polish / Język polski
ZIP

Data Sheets

5

Declarations of Conformity

5

CAD / 3D

5
Romanian / română
ZIP

Data Sheets

5

CAD / 3D

5
Slovenian / slovenščina
ZIP

Data Sheets

5

Declarations of Conformity

5

CAD / 3D

5
Serbian (Latin) / srpski
ZIP

Data Sheets

5

Declarations of Conformity

5

CAD / 3D

5
Swedish / Svenska
ZIP

Data Sheets

5

CAD / 3D

5
Ball valve with pneumatic actuator BAC1-006-CITV-D0
BAC1-006-CITV-D0 x 1.0 Pcs
Ball valve with pneumatic actuator BAC1-006-CITV-D0
Ball valve with pneumatic actuator Series BAC1; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAD052
Mounted pilot valve ABS51
ABS51 x 1.0 Pcs
Mounted pilot valve ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
C001-03 x 1.0 Pcs
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
C002-31-6 x 1.0 Pcs
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01
EB0X01 x 1.0 Pcs
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic
