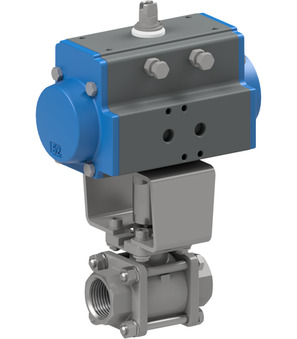

Ball valve with pneumatic actuator BAC1-004-SSTV-D0

Ball valve with pneumatic actuator BAC1-004-SSTV-D0

Ball valve with pneumatic actuator Series BAC1; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm; Actuator PAD032

Kugelhahn mit Druckluftdrehantrieb Serie BAC1
Kugelhahn mit Druckluftdrehantrieb Serie BAC1
Kugelhahn mit Druckluftdrehantrieb Serie BAC1
Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.07 Kg
Short Itemnumber: BAC1004SSTVD0
https://www.stasto.pl/web/image/product.template/86601/image_1920?unique=87fb56f

Ball valve with pneumatic actuator Series BAC1; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm; Actuator PAD032

1.296,20 zł 1296.2 PLN 1.296,20 zł

cena na zapytanie

excl. tax
  • Diameter
  • Connection
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread RP 1/2"
DN 15 mm
Length 65 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
Female thread RP 1/2"
DN 15 mm
Length 65 mm

BAC1-004-SSTV-D0

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

2

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

2

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

2

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

2

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

2

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

2

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of stainless steel 710000-1/2"
710000-1/2" x 1.0 Pcs
Ball valve made of stainless steel 710000-1/2"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm
Pneumatic actuator PAD032
PAD032 x 1.0 Pcs
Pneumatic actuator PAD032
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 32mm; Flange ISO5211 F03; Female square 9mm; Torque at 5,5bar 8Nm
RI3789 x 1.0 Pcs
RI3789
Mounting bracket; F03; Bolt 9-7
