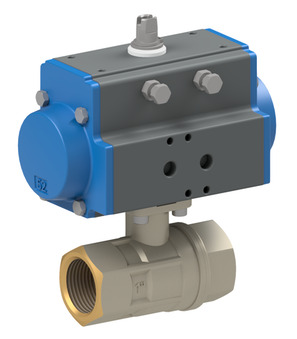

Ball valve with pneumatic actuator BAB1-008-BLTV-S0

Ball valve with pneumatic actuator BAB1-008-BLTV-S0

Ball valve with pneumatic actuator Series BAB1; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-40bar; Length 114mm; Actuator PAS0635

Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.7 Kg
Short Itemnumber: BAB1008BLTVS0
https://www.stasto.pl/web/image/product.template/86566/image_1920?unique=8861a40

Ball valve with pneumatic actuator Series BAB1; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-40bar; Length 114mm; Actuator PAS0635

2.068,00 zł 2068.0 PLN 2.068,00 zł

cena na zapytanie

excl. tax
  • Diameter
  • Connection
  • Male thread
  • Stroke
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Diameter Hose
  • Piston rod thread
  • Function
  • Actuation
  • Direction of flow control
  • Connector size
  • Switch type
  • Description
  • Design
  • Voltage
  • Switching capacity
  • Push force at 6 bar
  • Pressure range
  • Seal
  • Contact material
  • Material of case
  • Body
  • Coil
  • Actuator
  • Flow rate
  • Actuator 2
  • Max. inlet pressure
  • Series
  • Flow rate at 6.3bar/Δp=1bar
  • Brand
  • Screen
  • Suitable silencer

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 1 1/2"
DN 40 mm
Length 114 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
Female thread RP 1 1/2"
DN 40 mm
Length 114 mm

BAB1-008-BLTV-S0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of brass 2500-11/2"
2500-11/2" x 1.0 Pcs
Ball valve made of brass 2500-11/2"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0...40bar; Length 114mm; Flange ISO5211 F05; Square 11mm
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
