BAB1-006-SSTV-D0B-ABS52-C001-04-C002-31-6-EB0X01

Price:

2.732,40 zł
Ball valve with pneumatic actuator Series BAB1 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - pneumatically operated
  5. Ball valve with pneumatic actuator Series BAB1
  6. BAB1-006-SSTV-D0B-ABS52-C001-04-C002-31-6-EB0X01

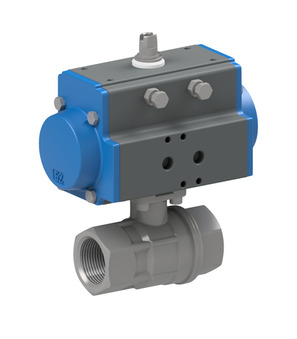

BAB1-006-SSTV-D0B-ABS52-C001-04-C002-31-6-EB0X01
BAB1-006-SSTV-D0B-EB0X01
BAB1-006-SSTV-D0B-EB0X01
1.918,80 zł
1.918,80 zł
BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-6
BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-6
2.117,70 zł
2.117,70 zł

BAB1-006-SSTV-D0B-ABS52-C001-04-C002-31-6-EB0X01

BAB1-006-SSTV-D0B
Ball valve with pneumatic actuator Series BAB1; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-64bar; Length 90mm; Actuator PAD052
ABS52
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-Wege-NAMUR-Impulsmagnetventil (NM52W2S-TP); Actuator PAD052-270
C001-04
Coil Type C001; Connector size 22mm; Voltage 12VDC / 24V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.721 Kg
Short Itemnumber:BAB1006SSTVD0BABS52C00104C002316EB0X01
https://www.stasto.pl/web/image/product.template/182906/image_1920?unique=94b97ec

BAB1-006-SSTV-D0B
ball valve with pneumatic actuator series BAB1; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-64bar; length 90mm; actuator PAD052
ABS52
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-Wege-NAMUR-Impulsmagnetventil (NM52W2S-TP); actuator PAD052-270
C001-04
coil type C001; connector size 22mm; voltage 12VDC / 24V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

2.732,40 zł 2732.4 PLN 2.732,40 zł

cena na zapytanie

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Valve interface Namur 1/4"
Female thread RP 1"
DN 25 mm
Length 90 mm
Designs
Connector size 22
Switch type Crouzet 831613
design
Design Standard
Electrical key figures
Voltage 12VDC / 24V/50-60Hz
Switching capacity 4A/250VAC-1A/24VDC
pressure
Pressure range 0...64 bar
materials
Contact material Silver-nickel
Material of case Plastic
characteristics
Coil C001
Actuator PAD052
