BA859-112-D0-01

Name: BA859-112-D0-01
Brand: STASTO
SKU: BA859-112-D0-01
Price: 3740.0 PLN
Availability: InStock

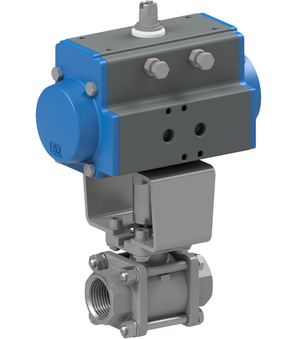

Ball valve with pneumatic actuator Series BA859-D0-01; Female thread; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAD075; Mounting kits Stainless steel

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.909 Kg
Short Itemnumber: BA859112D001

3.740,00 zł 3740.0 PLN 3.740,00 zł

Female thread
- RP 2"
DN
- 50 mm
Length
- 136 mm
Pressure range
- 0...25 bar
Actuator
- PAD075

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 2"
DN	50 mm
Length	136 mm
pressure
Pressure range	0...25 bar
characteristics
Actuator	PAD075

BA859-112-L x 1.0

BA859-112-L

ball valve made of stainless steel series BA859; full bore; three-parts type; female thread; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/FKM; medium temperature -20...+160°C; RP 11/2"; nominal diameter 40mm; pressure range 0...25bar; length 116mm

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

ATE0705 x 1.0
