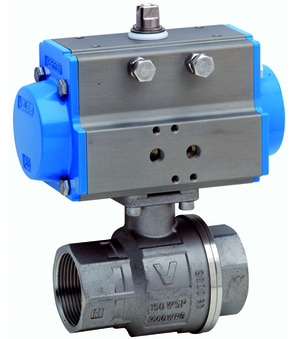

Ball valve with pneumatic actuator BA842-10-D0-B

Ball valve with pneumatic actuator BA842-10-D0-B

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0…40bar; Length 90mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.113 Kg
Short Itemnumber: BA84210D0B
https://www.stasto.pl/web/image/product.template/126394/image_1920?unique=f96ddcc

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0…40bar; length 90mm; actuator PAD052

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 1"
DN 25 mm
Length 90 mm
All specifications (6)
Pressure range 0...40 bar
Female thread RP 1"
DN 25 mm
Length 90 mm
Design ATEX
Brand STASTO
Ball valve made of stainless steel BA842-10-B
BA842-10-B x 1.0 Pcs
Ball valve made of stainless steel BA842-10-B
Ball valve made of stainless steel; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/EPDM; Medium temperature -20...+160°C; Connection G 1"; Nominal diameter 25mm; Pressure range 0...64bar; Length 90mm
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
