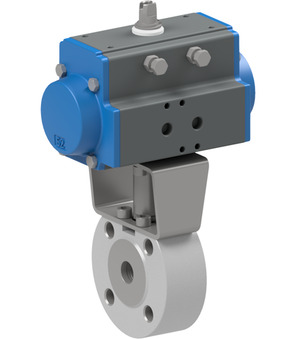

Flanged ball valve with pneumatic actuator BA776-15-D0-01

Name: Flanged ball valve with pneumatic actuator BA776-15-D0-01
Brand: STASTO
SKU: BA776-15-D0-01

Flanged ball valve with pneumatic actuator Series BA776; Body 1.4571; Ball 1.4571; Seals CRC/Graphite; Medium temperature -100...+720°C; Nominal diameter 15mm; Pressure range 0...175bar; Antistatic design; Length According to ANSI B16.10; Double acting actuator; Control pressure 5,5...8bar; Length 264mm; Actuator PAD115-H

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA77615D001

flanged ball valve with pneumatic actuator series BA776; body AISI 316Ti; ball AISI 316Ti; seals CRC/graphite; medium temperature -100...+720°C; nominal diameter 15mm; pressure range 0...175bar; antistatic design; length according to ANSI B16.10; double acting actuator; control pressure 5,5...8bar; length 264mm; actuator PAD115-H

On request

DN
- 15 mm
Length
- 35 mm
Pressure range
- 0...16 bar
Actuator
- PAD052

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	15 mm
Length	35 mm
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAD052

BA776-15-B-01 x 1.0

BA776-15-B-01

Flanged ball valve; Body 1.4571; Ball 1.4571; Seals CRC/Graphite; Medium temperature -100...+720°C; Nominal diameter 15mm; Pressure range 0...175bar; Antistatic design; Length According to ANSI B16.10

Add to Cart

PAD115-H x 1.0

Pneumatic actuator PAD115-H

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm

Add to Cart

RI3010 x 2.0
