BA775-34-S0-A0
BA730-10-B-A
BA730-10-B-A
2.789,10 zł
2.789,10 zł
CVT-15-NC-286
CVT-15-NC-286
3.431,20 zł
3.431,20 zł

BA775-34-S0-A0

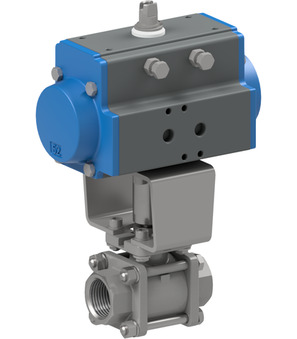

ball valve with pneumatic actuator; ATEX II 2 G/D; TA-Luft; female thread; housing, ball AISI 316; seals PTFE/FKM; compensation hole; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0-40bar; length 76mm; actuator PAS0755; NC; free of oil and grease for oxygen

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber:BA77534S0A0
https://www.stasto.pl/web/image/product.template/177796/image_1920?unique=cb8e22b

ball valve with pneumatic actuator; ATEX II 2 G/D; TA-Luft; female thread; housing, ball AISI 316; seals PTFE/FKM; compensation hole; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0-40bar; length 76mm; actuator PAS0755; NC; free of oil and grease for oxygen

999.999,00 zł 999999.0 PLN 999.999,00 zł

cena na zapytanie

  • Design

This combination does not exist.

Availability:
Contact Us
Design ATEX
Ball valve made of stainless steel BA775-34-L-A0
BA775-34-L-A0 x 1.0
Ball valve made of stainless steel BA775-34-L-A0
ball valve made of stainless steel series BA775-A; ATEX II 2 G/D; TA-Luft; full bore; three-parts type; female thread; housing, ball AISI 316; seals PTFE/FKM; compensation hole; medium temperature -20...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0...40bar; length 76mm; free of oil and grease for oxygen
Add to Cart
Pneumatic actuator PAS0755
PAS0755 x 1.0
Pneumatic actuator PAS0755
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 17,5Nm
Add to Cart
