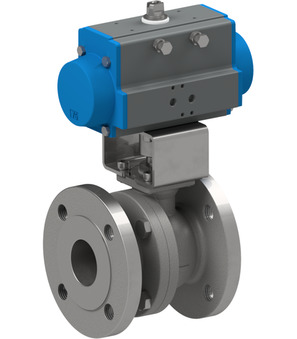

Flanged ball valve with pneumatic actuator BA758-32-S0-A

Name: Flanged ball valve with pneumatic actuator BA758-32-S0-A
Brand: STASTO
SKU: BA758-32-S0-A
Price: 4365.2 PLN
Availability: InStock

Flanged ball valve with pneumatic actuator; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Ball seal PTFE-graphite reinforced; Stem seal FKM/Peroxide; Single acting actuator; Control pressure 5,5...8bar; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 32mm; Flange PN40; Length 130mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA75832S0A

flanged ball valve with pneumatic actuator; for steam; ATEX II 2 G/D; fire-safe; TA-Luft; length according to EN558−1R27; full bore; body, ball AISI 316; ball seal PTFE-graphite reinforced; stem seal FKM/peroxide; single acting actuator; control pressure 5,5...8bar; pressure range steam 0...15bar; medium temperature -20...+198°C; nominal diameter 32mm; flange PN40; length 130mm; actuator PAS0855

4.365,20 zł 4365.2 PLN 4.365,20 zł

DN
- 32 mm
Length
- 130 mm
Flange
- PN40
Design
- ATEX
Pressure range
- 0...40 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	32 mm
Length	130 mm
Flange	PN40
design
Design	ATEX
pressure
Pressure range	0...40 bar

BA758-32-LLD-A x 1.0

Flanged ball valve BA758-32-LLD-A

Flanged ball valve Series BA758-A; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Ball seal PTFE-Graphite reinforced; Stem seal Graphoil/PTFE/FKM-Peroxide; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; With locking device; Nominal diameter 32mm; Flange PN40; Length 130mm

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

RI3525 x 1.0
