BA742-25-S0

Name: BA742-25-S0
Brand: STASTO
SKU: BA742-25-S0
Price: 6315.3 PLN
Availability: InStock

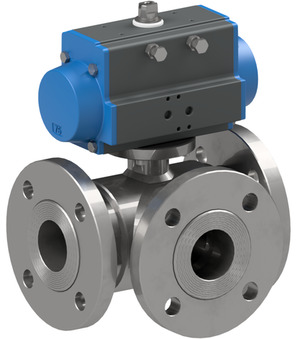

Flanged ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+150°C; Nominal diameter 25mm; Length 150mm; Pressure range 0...40bar; Flange PN40; Actuator PAS1005; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.01 Kg
Short Itemnumber: BA74225S0

flanged ball valve with pneumatic actuator; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+150°C; nominal diameter 25mm; length 150mm; pressure range 0...40bar; flange PN40; actuator PAS1005; ball L

6.315,30 zł 6315.3 PLN 6.315,30 zł

DN
- 25 mm
Length
- 150 mm
Flange
- PN40
Ball
- L
Pressure range
- 0...40 bar
Actuator
- PAS1005

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	25 mm
Length	150 mm
Flange	PN40
Designs
Ball	L
pressure
Pressure range	0...40 bar
characteristics
Actuator	PAS1005

BA742-25-B x 1.0

BA742-25-B

Flanged ball valve; Bare shaft; 3-way-type; Full bore; Body 1.4404 polished; Ball 1.4404; Seals PTFE/EPDM; Sealing on three ports; Medium temperature -20...+150°C; Nominal diameter 25mm; Druckbereich 0...40bar; Flansch PN40; Length 150mm; Ball L; Flange ISO5211 F05; Square 14mm

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

04808007001 x 1.0

04808007001

Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm

Add to Cart

IV/00028/09 x 1.0

IV/00028/09

Bolt; 1.4305; Diameter 30mm; Height of the bolt 59mm; Male square 17mm; Height of the male square 18mm; Female square 14mm; Height of the female square 14mm

Add to Cart
