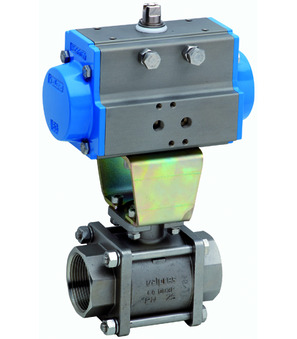

Ball valve with pneumatic actuator 11/2"-40-0...25-116-PAD063
ball valve with pneumatic actuator series BA673; female thread; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/EPDM; compensation hole; double acting actuator; control pressure 5,5...8bar; medium temperature -30...+160°C; RP 11/2"; nominal diameter 40mm; pressure range 0...25bar; length 116mm; actuator PAD063
Weight: 4.72 Kg
Short Itemnumber: BA673112D0
ball valve with pneumatic actuator series BA673; female thread; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/EPDM; compensation hole; double acting actuator; control pressure 5,5...8bar; medium temperature -30...+160°C; RP 11/2"; nominal diameter 40mm; pressure range 0...25bar; length 116mm; actuator PAD063
This product is no longer available.
| dimension | |
|---|---|
| Female thread | RP 1 1/2" |
| DN | 40 mm |
| Length | 116 mm |
| pressure | |
| Pressure range | 0...25 bar |
| characteristics | |
| Actuator | PAD063 |
No spare parts are available for this product.
