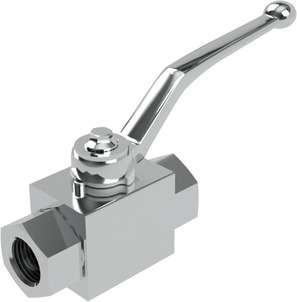

High pressure ball valve BA670-18L-LLD-01
High pressure ball valve Series BA670; Male thread According to ISO 8434-1 (DIN 2353); Body 1.4571; Ball 1.4571 Hard chrome plated; Seals POM/NBR; Medium temperature -30...+100°C; Incl. Abrasion protection; Connection 18L/M26x1,5; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Incl. 2 inductive limit switches OPEN/CLOSED And Locking device
Intrastat No.: 84818081
Country of origin: Germany
Short Itemnumber: BA67018LLLD01
Country of origin: Germany
Short Itemnumber: BA67018LLLD01
high pressure ball valve series BA670; male thread according to ISO 8434-1 (DIN 2353); body AISI 316Ti; ball AISI 316Ti hard chrome plated; seals POM/NBR; medium temperature -30...+100°C; incl. abrasion protection; connection 18L/M26x1,5; nominal diameter 13mm; pressure range 0...500bar; length 83mm; incl. 2 inductive limit switches OPEN/CLOSED and Locking device
| dimension | |
|---|---|
| Connection | 18L/M26x1,5 |
| DN | 13 mm |
| Length | 83 mm |
| pressure | |
| Pressure range | 0...500 bar |
No spare parts are available for this product.
