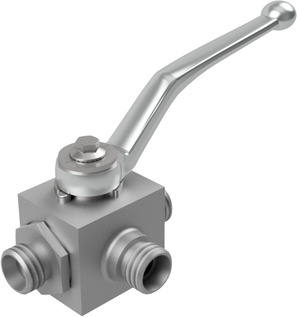

High pressure ball valve Series BA236, BA646; 3-way-type; Sealing on two sides; Pressure inlet just in front; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; Connection 12S/M20x1,5; Nominal diameter 8mm; Pressure range 0...500bar; Length 76mm; Ball T
Country of origin: Germany
Weight: 0.44 Kg
Short Itemnumber: BA64612SL
high pressure ball valve series BA236, BA646; 3-way-type; sealing on two sides; pressure inlet just in front; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; medium temperature -20...+100°C; for liquids; connection 12S/M20x1,5; nominal diameter 8mm; pressure range 0...500bar; length 76mm; ball T
Technical specifications
| Pressure range | 0...500 bar |
|---|---|
| Connection | 12S/M20x1,5 |
| DN | 8 mm |
| Length | 76 mm |
| Pressure range | 0...500 bar |
| Connection | 12S/M20x1,5 |
| DN | 8 mm |
| Length | 76 mm |
| Ball | T |
| Male thread | M20x1,5 |
| Type | 12S |
BA646-12S-L
