Ball valve with electrical actuator BA542-20-0L

Price:

8.912,20 zł
List prices PL
Ball valve with electrical actuator Series BA541, BA542 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - electrically operated
  5. Ball valve with electrical actuator Series BA541, BA542
  6. BA542-20-0L

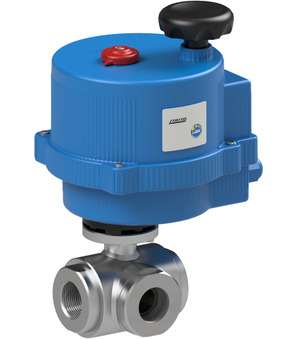

Ball valve with electrical actuator BA542-20-0L

Ball valve with electrical actuator BA542-20-0L

Ball valve with electrical actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 2"; DN 50mm; Pressure range 0…40bar; Length 144mm; Operating time 9s; Voltage 24VAC/DC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.55 Kg
Short Itemnumber:BA542200L
https://www.stasto.pl/web/image/product.template/137089/image_1920?unique=c096d6d

ball valve with electrical actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 2"; DN 50mm; pressure range 0…40bar; length 144mm; operating time 9s; voltage 24VAC/DC; ball L

8.912,20 zł 8912.2 PLN 8.912,20 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 2"
DN 50 mm
Length 144 mm
Designs
Ball L
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...40 bar
characteristics
Actuator VB0600E9Q17
Operating time 9 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with electrical actuator Series BA541, BA542_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s elektropohonem série BA541, BA542_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med elektrisk aktuator Serie BA541, BA542_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Elektroantrieb Serie BA541, BA542_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με ηλεκτρικό ενεργοποιητή Σειρά BA541, BA542_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador eléctrico Serie BA541, BA542_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili sähkötoimilaitteella Sarja BA541, BA542_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur électrique Série BA541, BA542_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s električnim pogonom Serija BA541, BA542_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett gömbcsap sorozat BA541, BA542_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore elettrico Serie BA541, BA542_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med elektrisk aktuator Serie BA541, BA542_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met elektrische aandrijving Serie BA541, BA542_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem elektrycznym Seria BA541, BA542_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu sferă cu actuator electric serie BA541, BA542_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa z električnim pogonom serija BA541, BA542_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa električnim aktuatorom serije BA541, BA542_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med elektriskt ställdon Serie BA541, BA542_SV.pdf
Download
Ball valve made of stainless steel BA542-20-B
BA542-20-B x 1.0
Ball valve made of stainless steel BA542-20-B
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 2"; Nominal diameter 50mm; Pressure range 0...40bar; Length 144mm; Ball L; Flange ISO5211 F07; Square 17mm
Add to Cart
Electrical actuator VB060-0E9-Q17
VB060-0E9-Q17 x 1.0
Electrical actuator VB060-0E9-Q17
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 17mm; Voltage 24VAC/DC; Protection class IP67
