Ball valve with pneumatic actuator BA542-12-D0-A

Price:

999.999,00 zł
Ball valve with pneumatic actuator Series BA541-D0-A, BA542-D0-A Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA541-D0-A, BA542-D0-A
  6. BA542-12-D0-A

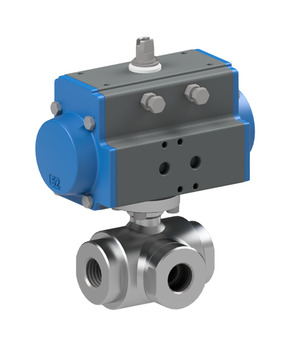

Ball valve with pneumatic actuator BA542-12-D0-A
  2. STASTO Store
  3. Ball valve with pneumatic actuator BA542-12-D0-A
Ball valve with pneumatic actuator BA542-38-D0-A
Ball valve with pneumatic actuator BA542-38-D0-A
cena na zapytanie
Ball valve with pneumatic actuator BA541-12-D0-A
Ball valve with pneumatic actuator BA541-12-D0-A
2.427,90 zł
2.427,90 zł

Ball valve with pneumatic actuator BA542-12-D0-A

Ball valve with pneumatic actuator Series BA541-D0-A, BA542-D0-A; ATEX II 2 G/D T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 1/2"; Nominal diameter 15mm; Pressure range 0…100bar; Length 82mm; Actuator PAD052; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.353 Kg
Short Itemnumber:BA54212D0A
https://www.stasto.pl/web/image/product.template/142093/image_1920?unique=7146fe5

ball valve with pneumatic actuator series BA541-D0-A, BA542-D0-A; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; double acting actuator ATEX II 2 G/D c T6; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 1/2"; nominal diameter 15mm; pressure range 0…100bar; length 82mm; actuator PAD052; ball L

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Female thread
  • DN
  • DN
  • Length
  • Ball
  • Design
  • Pressure range
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 12 mm, 15 mm
Length 82 mm
Designs
Ball L
design
Design ATEX
pressure
Pressure range 0...40 bar, 0...100 bar
characteristics
Actuator PAD052
Ball valve made of stainless steel BA542-12-B-A
BA542-12-B-A x 1.0
Ball valve made of stainless steel BA542-12-B-A
Ball valve made of stainless steel Series BA541-B-A, BA542-A; ATEX II 2 G/D T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1/2"; Nominal diameter 15mm; Pressure range 0...100bar; Length 82mm; Ball L; Flange ISO5211 F03; Square 9mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
Add to Cart
dimension
Female thread G 1/2"
DN 12 mm, 15 mm
Length 82 mm
Designs
Ball L
design
Design ATEX
pressure
Pressure range 0...40 bar, 0...100 bar
characteristics
Actuator PAD052
Ball valve made of stainless steel BA542-12-B-A
BA542-12-B-A x 1.0
Ball valve made of stainless steel BA542-12-B-A
Ball valve made of stainless steel Series BA541-B-A, BA542-A; ATEX II 2 G/D T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1/2"; Nominal diameter 15mm; Pressure range 0...100bar; Length 82mm; Ball L; Flange ISO5211 F03; Square 9mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
Add to Cart
