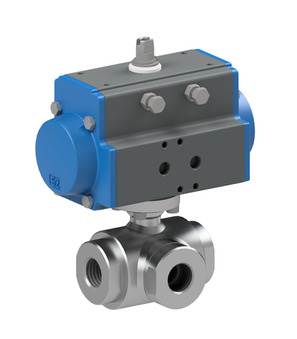

Ball valve with pneumatic actuator BA542-114-D0-A

Ball valve with pneumatic actuator BA542-114-D0-A

Ball valve with pneumatic actuator Series BA541-D0-A, BA542-D0-A; ATEX II 2 G/D T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 11/4"; Nominal diameter 32mm; Pressure range 0…64bar; Length 118mm; Actuator PAD075; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.48 Kg
Short Itemnumber:BA542114D0A
https://www.stasto.pl/web/image/product.template/146673/image_1920?unique=e6de438

ball valve with pneumatic actuator series BA541-D0-A, BA542-D0-A; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; double acting actuator ATEX II 2 G/D c T6; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; actuator PAD075; ball L

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Female thread
  • DN
  • Length
  • Ball
  • Design
  • Pressure range
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1 1/4"
DN 32 mm
Length 118 mm
Designs
Ball L
design
Design ATEX
pressure
Pressure range 0...40 bar, 0...64 bar
characteristics
Actuator PAD075
Ball valve made of stainless steel BA542-114-B-A
BA542-114-B-A x 1.0
Ball valve made of stainless steel BA542-114-B-A
Ball valve made of stainless steel Series BA541-B-A, BA542-A; ATEX II 2 G/D T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 11/4"; Nominal diameter 32mm; Pressure range 0...64bar; Length 118mm; Ball L; Flange ISO5211 F07; Square 17mm
Add to Cart
Pneumatic actuator PAD075
PAD075 x 1.0
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
