Ball valve made of stainless steel Series BA541, BA542 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve made of stainless steel Series BA541, BA542
  6. BA542-112-B-01

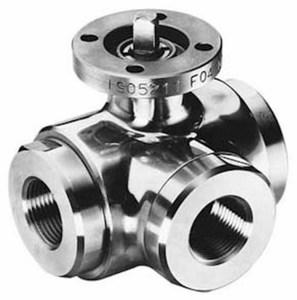

Ball valve made of stainless steel BA542-112-B-01

Ball valve made of stainless steel BA542-112-B-01

Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 11/2"; Nominal diameter 40mm; Pressure range 0…64bar; Length 134mm; Ball L; Flange ISO5211 F05; Square 14mm

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.65 Kg
Short Itemnumber: BA542112B01
https://www.stasto.pl/web/image/product.template/137013/image_1920?unique=0ec923a

ball valve made of stainless steel series BA541, BA542; bare shaft; 3-way-type; female thread; full bore; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; sealing on three ports; medium temperature -20...+170°C; G 11/2"; nominal diameter 40mm; pressure range 0…64bar; length 134mm; ball L; flange ISO5211 F05; square 14mm

4.847,50 zł 4847.5 PLN 4.847,50 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Square
  • Flange ISO5211
  • Ball
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1 1/2"
DN 40 mm
Length 134 mm
Square 14 mm
Designs
Flange ISO5211 F05
Ball L
pressure
Pressure range 0...64 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve made of stainless steel Series BA541, BA542_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout - nerezový série BA541, BA542_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil i rustfrit stål Serie BA541, BA542_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Edelstahlkugelhahn Serie BA541, BA542_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Ανοξείδωτη σφαιρική βάνα Σειρά BA541, BA542_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola de acero inoxidable Serie BA541, BA542_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Ruostumaton teräskuulaventtiili Sarja BA541, BA542_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique en acier inoxydable Série BA541, BA542_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil od nehrđajućeg čelika Serija BA541, BA542_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_rozsdamentes gömbcsap sorozat BA541, BA542_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera in acciaio inox Serie BA541, BA542_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil i rustfritt stål Serie BA541, BA542_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_RVS-kogelafsluiter Serie BA541, BA542_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy ze stali szlachetnej Seria BA541, BA542_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă sferică din oțel inoxidabil serie BA541, BA542_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa iz legiranega jekla serija BA541, BA542_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil od nerđajućeg čelika serije BA541, BA542_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil i rostfritt stål Serie BA541, BA542_SV.pdf
Download
No spare parts are available for this product.
