BA542-10-D0-3C-01
BA541-10-D0-3C-01
BA541-10-D0-3C-01
3.639,30 zł
3.639,30 zł
SK-5-FCF80NC-544294
SK-5-FCF80NC-544294
3.700,80 zł
3.700,80 zł

BA542-10-D0-3C-01

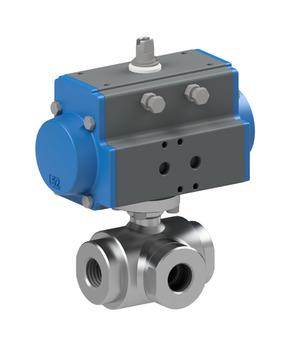

Ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Double acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; G 1"; Nominal diameter 25mm; Pressure range 0…40bar; Length 102mm; Actuator PAD063; Ball L; Incl. inspection certificate 3.1 For pressure, function and tightness; FDA-approved

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.31 Kg
Short Itemnumber:BA54210D03C01
https://www.stasto.pl/web/image/product.template/159651/image_1920?unique=01c75ad

ball valve with pneumatic actuator; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; double acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+160°C; G 1"; nominal diameter 25mm; pressure range 0…40bar; length 102mm; actuator PAD063; ball L; incl. inspection certificate 3.1 for pressure, function and tightness; FDA-approved

3.639,30 zł 3639.3 PLN 3.639,30 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    BA542-10-B-3C-01
    BA542-10-B-3C-01 x 1.0
    BA542-10-B-3C-01
    Ball valve made of stainless steel; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C; G 1"; Nominal diameter 25mm; Pressure range 0...40bar; Length 102mm; Ball L; Flange ISO5211 F05; Square 14mm, Incl. inspection certificate 3.1 For pressure, function and tightness; FDA-approved
    Add to Cart
    Pneumatic actuator PAD063
    PAD063 x 1.0
    Pneumatic actuator PAD063
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
