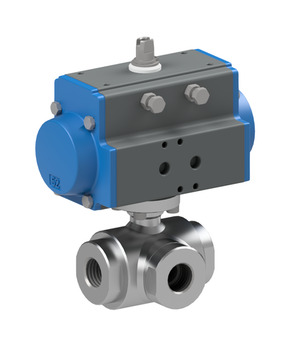

Ball valve with pneumatic actuator BA541-14-S0-A
  2. STASTO Store
  3. Ball valve with pneumatic actuator BA541-14-S0-A
Ball valve with pneumatic actuator BA542-114-D0-A
Ball valve with pneumatic actuator BA542-114-D0-A
cena na zapytanie
Ball valve with pneumatic actuator BA541-38-S0-A
Ball valve with pneumatic actuator BA541-38-S0-A
cena na zapytanie

Ball valve with pneumatic actuator BA541-14-S0-A

Ball valve with pneumatic actuator Series BA541-S0-A, BA542-S0-A; ATEX II 2 G/D c T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 1/4"; Nominal diameter 12mm; Pressure range 0…100bar; Length 72mm; Actuator PAS0755; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.67 Kg
Short Itemnumber:BA54114S0A
https://www.stasto.pl/web/image/product.template/155899/image_1920?unique=c27975c

ball valve with pneumatic actuator series BA541-S0-A, BA542-S0-A; ATEX II 2 G/D c T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator ATEX II 2 G/D c T6; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 1/4"; nominal diameter 12mm; pressure range 0…100bar; length 72mm; actuator PAS0755; ball T

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Ball
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/4"
DN 12 mm
Length 72 mm
Designs
Ball T
design
Design ATEX
pressure
Pressure range 0...100 bar
characteristics
Actuator PAS0755
BA541-14-B-A x 1.0
Ball valve made of stainless steel BA541-14-B-A
Ball valve made of stainless steel Series BA541-B-A, BA542-A; ATEX II 2 G/D T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1/4"; Nominal diameter 12mm; Pressure range 0...100bar; Length 72mm; Ball T; Flange ISO5211 F03; Square 9mm
Add to Cart
Pneumatic actuator PAS0755
PAS0755 x 1.0
Pneumatic actuator PAS0755
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 17,5Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/457/04 x 1.0
A4/457/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
Add to Cart
dimension
Female thread G 1/4"
DN 12 mm
Length 72 mm
Designs
Ball T
design
Design ATEX
pressure
Pressure range 0...100 bar
characteristics
Actuator PAS0755
BA541-14-B-A x 1.0
Ball valve made of stainless steel BA541-14-B-A
Ball valve made of stainless steel Series BA541-B-A, BA542-A; ATEX II 2 G/D T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1/4"; Nominal diameter 12mm; Pressure range 0...100bar; Length 72mm; Ball T; Flange ISO5211 F03; Square 9mm
Add to Cart
Pneumatic actuator PAS0755
PAS0755 x 1.0
Pneumatic actuator PAS0755
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 17,5Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/457/04 x 1.0
A4/457/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
Add to Cart
