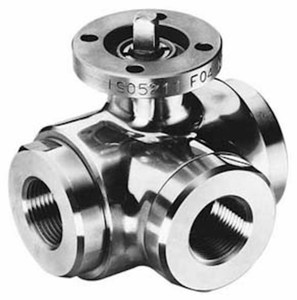

Ball valve made of stainless steel BA541-114-2S0

Ball valve made of stainless steel BA541-114-2S0

Ball valve with pneumatic actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Single acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 11/4"; Nominal diameter 32mm; Pressure range 0…64bar; Length 118mm; Actuator PAS1005; Ball T; Flow path 02

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.24 Kg
Short Itemnumber: BA5411142S0
https://www.stasto.pl/web/image/product.template/179186/image_1920?unique=2a86bbc

ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; actuator PAS1005; ball T; flow path 02

5.654,40 zł 5654.4 PLN 5.654,40 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Square
  • Flange ISO5211
  • Ball
  • Pressure range
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1 1/4"
DN 32 mm
Length 118 mm
Designs
Ball T
pressure
Pressure range 0...40 bar, 0...64 bar
Ball valve made of stainless steel BA541-114-B
BA541-114-B x 1.0
Ball valve made of stainless steel BA541-114-B
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 11/4"; Nominal diameter 32mm; Pressure range 0…64bar; Length 118mm; Ball T; Flange ISO5211 F07; Square 17mm
Add to Cart
Pneumatic actuator PAS1005
PAS1005 x 1.0
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
Add to Cart
