BA541-112-D0-ABS51-C001-03-C002-31-LVCV20-2

BA541-112-D0-ABS51-C001-03-C002-31-LVCV20-2

BA541-112-D0

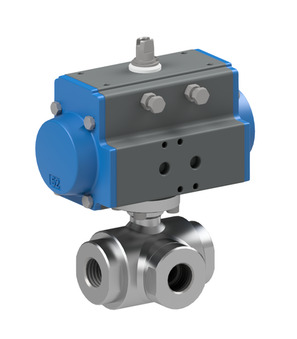

Ball valve with pneumatic actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Double acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 11/2"; Nominal diameter 40mm; Pressure range 0…64bar; Length 134mm; Actuator PAD075; Ball T
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
Connector; Connector size 22mm; mit eingebauter LED-gelb, VDR und PVC-Kabel (2 m); Voltage 24VAC/DC

Kugelhahn mit Druckluftdrehantrieb Serie BA541, BA542
Kugelhahn mit Druckluftdrehantrieb Serie BA541, BA542
Kugelhahn mit Druckluftdrehantrieb Serie BA541, BA542
Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.81 Kg
Short Itemnumber: BA541112D0ABS51C00103C00231LVCV202
https://www.stasto.pl/web/image/product.template/201035/image_1920?unique=dcbef37

BA541-112-D0
ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; double acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/2"; nominal diameter 40mm; pressure range 0…64bar; length 134mm; actuator PAD075; ball T
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
connector; connector size 22mm; mit eingebauter LED-gelb, VDR und PVC-Kabel (2 m); voltage 24VAC/DC

7.003,00 zł 7003.0 PLN 7.003,00 zł

cena na zapytanie

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Ball
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread G 1 1/2"
DN 40 mm
Length 134 mm
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
Female thread G 1 1/2"
DN 40 mm
Length 134 mm
Ball T
Voltage 24VDC / 48V/50-60Hz
Design With integrated LED-yellow, VDR and PVC-cable (2 m)

BA541-112-D0-ABS51-C001-03-C002-31-LVCV20-2
