BA493-34-0L

Name: BA493-34-0L
Brand: STASTO
SKU: BA493-34-0L
Price: 2592.0 PLN
Availability: InStock

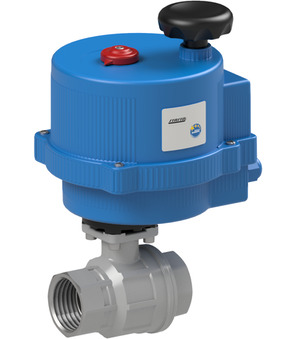

Ball valve with electrical actuator Series BA493-0L; Two-parts type; Female thread; Body, Ball 1.4408; Seals PTFE/FFKM; Medium temperature 0...+100°C; RP 3/4"; DN 20mm; Pressure range 0-105bar; Length 79mm; Operating time 10s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.35 Kg
Short Itemnumber: BA493340L

ball valve with electrical actuator series BA493-0L; two-parts type; female thread; body, ball AISI 316; seals PTFE/FFKM; medium temperature 0...+100°C; RP 3/4"; DN 20mm; pressure range 0-105bar; length 79mm; operating time 10s; voltage 24VAC/DC

2.592,00 zł 2592.0 PLN 2.592,00 zł

Female thread
- RP 3/4"
DN
- 20 mm
Length
- 78 mm
Voltage
- 24VAC/DC
Pressure range
- 0...64 bar
Actuator
- VB015L24
Operating time
- 10 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 3/4"
DN	20 mm
Length	78 mm
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...64 bar
characteristics
Actuator	VB015L24
Operating time	10 s

BA493-34-L-A x 1.0

Ball valve made of stainless steel BA493-34-L-A

Ball valve made of stainless steel Series BA493-A; ATEX II 2 G/D; TA-Luft; Full bore; Two-parts type; Female thread; Body, Ball 1.4408; Seals PTFE/FFKM; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0...105bar; Length 79mm

Add to Cart

VB015-L-24 x 1.0

Electrical actuator VB015-L-24

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP65

Add to Cart

RI3781 x 1.0
