BA384-15-S0-A

Price:

2.350,30 zł
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA384-15-S0-A
BA384-15-S0-A
BA133-65-L
BA133-65-L
cena na zapytanie
QZB00D04AD041+QZB11G07AB041+QZD070750
QZB00D04AD041+QZB11G07AB041+QZD070750
cena na zapytanie

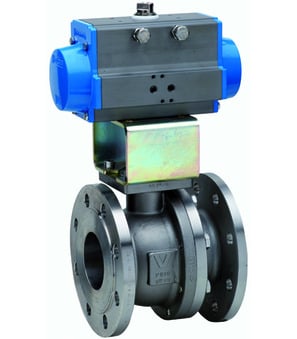

BA384-15-S0-A

flanged ball valve with pneumatic actuator series BA384-S-A; ATEX II 2 G/D c T3; fire-safe; TA-Luft; length according to EN558−1R27; full bore; body steel A352-LCB, ball AISI 304; seals TFM-MPTFE/Graphoil/V-Pack PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+180°C; nominal diameter 15mm; pressure range 0...40bar; flange PN40; length 115mm; actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.12 Kg
Short Itemnumber:BA38415S0A
https://www.stasto.pl/web/image/product.template/229375/image_1920?unique=56088b7

flanged ball valve with pneumatic actuator series BA384-S-A; ATEX II 2 G/D c T3; fire-safe; TA-Luft; length according to EN558−1R27; full bore; body steel A352-LCB, ball AISI 304; seals TFM-MPTFE/Graphoil/V-Pack PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+180°C; nominal diameter 15mm; pressure range 0...40bar; flange PN40; length 115mm; actuator PAS0525

2.350,30 zł 2350.3 PLN 2.350,30 zł

cena na zapytanie

  • Design

This combination does not exist.

Availability:
Contact Us
Design ATEX
BA384-15-LLD-A
BA384-15-LLD-A x 1.0
BA384-15-LLD-A
Flanged ball valve Series BA384-LLD-A; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Steel A352-LCB, Ball 1.4301; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Medium temperature -40...+180°C; With locking device; Nominal diameter 15mm; Pressure range 0...40bar; Flange PN40; Length 115mm
Add to Cart
Pneumatic actuator PAS0525
PAS0525 x 1.0
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
Add to Cart
Accessory Products
