BA368-125-S0-A-01

Name: BA368-125-S0-A-01
Brand: STASTO
SKU: BA368-125-S0-A-01
Price: 24421.8 PLN
Availability: InStock

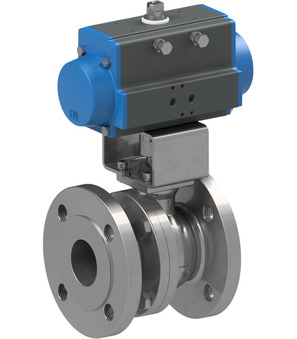

flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; fire-safe; TA-Luft; length according to EN558−1R27; housing, ball AISI 316; seals TFM-MPTFE/Graphoil/V-Pack PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+180°C; nominal diameter 125mm; pressure range 0...16bar; flange PN16; length 325mm; actuator PAS1605-L low temperature equipment

Intrastat No.: 84818081
Country of origin: Italy
Weight: 81.8 Kg
Short Itemnumber: BA368125S0A01

24.421,80 zł 24421.8 PLN 24.421,80 zł

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BA368-125-LLD-A x 1.0

BA368-125-LLD-A

Flanged ball valve Series BA368-LLD-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack; Medium temperature -40...+180°C; With locking device; Nominal diameter 125mm; Pressure range 0...16bar; Flange PN16; Length 325mm

Add to Cart

PAS1605-L x 1.0

Pneumatic actuator PAS1605-L

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart

RI3997 x 1.0
