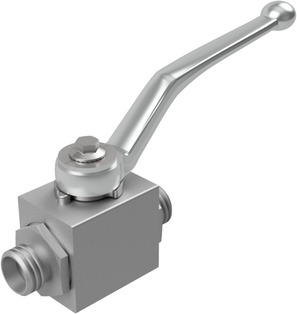

High pressure ball valve BA362-16S-L-01
High pressure ball valve Series BA362-L; Male thread according to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Stainless steel; Ball seals Cast iron; Stem seal Special seals; O-rings FKM; Medium temperature -20...+100°C; For Isocyanate; Connection 16S/M24x1,5; Nominal diameter 20mm; Pressure range 0…420bar; Length 90mm
Intrastat No.: 84818081
Country of origin: Germany
Weight: 0.63 Kg
Short Itemnumber: BA36216SL01
Country of origin: Germany
Weight: 0.63 Kg
Short Itemnumber: BA36216SL01
high pressure ball valve series BA362-L; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball stainless steel; ball seals cast iron; stem seal special seals; o-rings FKM; medium temperature -20...+100°C; for isocyanate; connection 16S/M24x1,5; nominal diameter 20mm; pressure range 0…420bar; length 90mm
| dimension | |
|---|---|
| Connection | 16S/M24x1,5 |
| DN | 20 mm |
| Length | 90 mm |
| pressure | |
| Pressure range | 0...420 bar |
No spare parts are available for this product.
