Flanged ball valve with pneumatic actuator Series BA353 Store

Flanged ball valve with pneumatic actuator BA353-50-S0-A

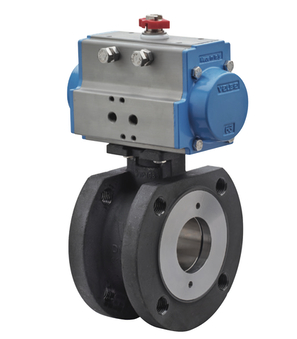

Name: Flanged ball valve with pneumatic actuator BA353-50-S0-A
Brand: STASTO
SKU: BA353-50-S0-A
Price: 3199.2 PLN
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA353; ATEX II 2 G/D; Flange PN16; Body Steel A352-LCB; Ball 1.4301; Seals MPTFE/PTFE/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar; Nominal diameter 50mm; Length 82mm; Actuator PAS0755

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.91 Kg
Short Itemnumber:BA35350S0A

flanged ball valve with pneumatic actuator series BA353; ATEX II 2 G/D; flange PN16; body steel A352-LCB; ball AISI 304; seals MPTFE/PTFE/FKM; single acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+180°C; pressure range 0...16bar; nominal diameter 50mm; length 82mm; actuator PAS0755

3.199,20 zł 3199.2 PLN 3.199,20 zł

DN
- 50 mm
Length
- 82 mm
Design
- ATEX
Actuator
- PAS0755

This combination does not exist.

Availability:

Add to Cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	82 mm
design
Design	ATEX
characteristics
Actuator	PAS0755

BA353-50-B-A x 1.0

BA353-50-B-A

Flanged ball valve; ATEX II 2G/D c T3; Bare shaft; Flange PN16; Full bore; Body Steel; Ball 1.4301; Seals MPTFE/PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+180°C; Nominal diameter 50mm; Length 82mm; Flange ISO5211 F05; Square 11mm

Add to Cart

PAS0755 x 1.0

Pneumatic actuator PAS0755

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 17,5Nm
