BA280-112-PL

BA280-112-PL

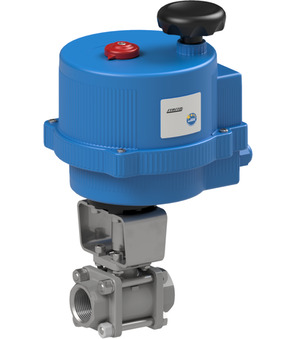

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/EPDM; Medium temperature -20...+130°C; RP 11/2"; DN 40mm; Pressure range 0-25bar; Length 116mm; Operating time 9s; Voltage 24VAC/DC; NC-Accumulator for safety position

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.66 Kg
Short Itemnumber: BA280112PL
https://www.stasto.pl/web/image/product.template/147789/image_1920?unique=f96ddcc

ball valve with electrical actuator; female thread; body, ball AISI 316; seals PTFE/EPDM; medium temperature -20...+130°C; RP 11/2"; DN 40mm; pressure range 0-25bar; length 116mm; operating time 9s; voltage 24VAC/DC; NC-accumulator for safety position

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-25bar
Brand STASTO
Pressure range 0-25bar
Brand STASTO
710163-11/2" x 1.0 Pcs
710163-11/2"
Ball valve made of stainless steel; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/EPDM; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm
Electrical actuator VB060-L-AKKU
VB060-L-AKKU x 1.0 Pcs
Electrical actuator VB060-L-AKKU
Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Function NC
RI3031 x 1.0 Pcs
RI3031
Mounting bracket; F07/F05-F05; Bolt 14-10
