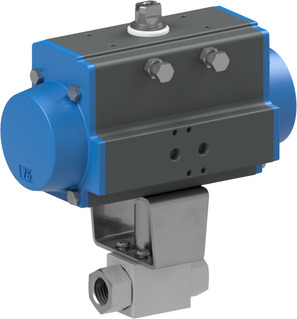

Ball valve with pneumatic actuator BA268-114-S0

Ball valve with pneumatic actuator BA268-114-S0

Ball valve with pneumatic actuator Series BA268; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/EPDM-Perox; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; G 11/4"; Nominal diameter 25mm; Pressure range 0...350bar; Length 120mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 16.76 Kg
Short Itemnumber: BA268114S0
https://www.stasto.pl/web/image/product.template/152084/image_1920?unique=a5f9280

ball valve with pneumatic actuator series BA268; female thread; body zinc plated steel; ball steel; seals POM/EPDM-Perox; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 11/4"; nominal diameter 25mm; pressure range 0...350bar; length 120mm; actuator PAS1255

3.919,10 zł 3919.1 PLN 3.919,10 zł

cena na zapytanie

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...350 bar
Female thread G 1 1/4"
DN 25 mm
Length 120 mm
Pressure range 0...350 bar
Female thread G 1 1/4"
DN 25 mm
Length 120 mm
BA268-114-B x 1.0 Pcs
High pressure ball valve BA268-114-B
High pressure ball valve Series BA268-B; Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/EPDM; Medium temperature -20...+100°C; G 11/4"; Nominal diameter 25mm; Pressure range 0...350bar; Length 120mm; Flange ISO5211 F05; Square 14mm
Pneumatic actuator PAS1255
PAS1255 x 1.0 Pcs
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
