BA243-12-D0-02

Name: BA243-12-D0-02
Brand: STASTO
SKU: BA243-12-D0-02
Price: 8556.7 PLN
Availability: InStock

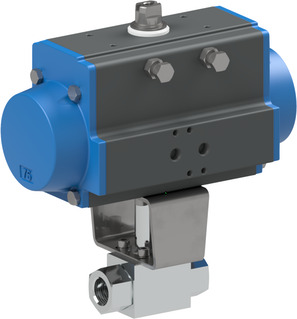

Ball valve with pneumatic actuator; Female thread; Body; Ball 1.4571/1.4404; Seals PEEK/FKM FDA; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; G 3/8"; Nominal diameter 10mm; Pressure range 0...500bar; Length 72mm; Actuator Completely made of stainless steel PAD075

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA24312D002

ball valve with pneumatic actuator; female thread; body; ball AISI 316Ti/AISI 316L; seals PEEK/FKM FDA; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; G 3/8"; nominal diameter 10mm; pressure range 0...500bar; length 72mm; actuator completely made of stainless steel PAD075

8.556,70 zł 8556.7 PLN 8.556,70 zł

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA243-12-B-02 x 1.0

BA243-12-B-02

High pressure ball valve; Female thread; Body, Ball 1.4571/1.4404; Seals PEEK/FKM (FDA); Medium temperature -20...+200°C; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Flange ISO5211 F03; Square 9mm

Add to Cart

PAD075-SS x 1.0

Pneumatic actuator PAD075-SS

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Completely made of stainless steel; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

A4/223/96 x 1.0

A4/223/96

Bolt; 1.4305; Diameter 20mm; Height of the bolt 43mm; Male square 14mm; Height of the male square 15mm; Female square 9mm; Height of the female square 10mm

Add to Cart

ATE0503-50 x 1.0
