Flanged ball valve with pneumatic actuator Series BA178-S0-A Store

Flanged ball valve with pneumatic actuator BA178-50-S0-A

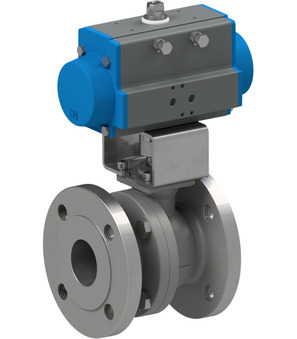

Name: Flanged ball valve with pneumatic actuator BA178-50-S0-A
Brand: STASTO
SKU: BA178-50-S0-A
Price: 6516.0 PLN
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA178-S0-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar; Nominal diameter 50mm; Length 178mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 18.64 Kg
Short Itemnumber: BA17850S0A

flanged ball valve with pneumatic actuator series BA178-S0-A; ATEX II 2 G/D; fire-safe; TA-Luft; length according to ANSI B16.10; flange ANSI150; full bore; body AISI 316; ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...20bar; nominal diameter 50mm; length 178mm; actuator PAS1005

6.516,00 zł 6516.0 PLN 6.516,00 zł

DN
- 50 mm
Length
- 178 mm
Design
- ATEX
Actuator
- PAS1005

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	178 mm
design
Design	ATEX
characteristics
Actuator	PAS1005

BA178-50-S0 x 1.0

Flanged ball valve with pneumatic actuator BA178-50-S0

Flanged ball valve with pneumatic actuator Series BA178-S0; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar; Nominal diameter 50mm; Length 178mm; Actuator PAS1005
