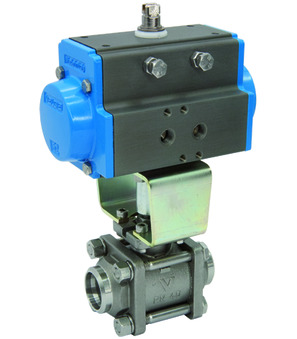

Ball valve with pneumatic actuator BA175-40-D0-A

Ball valve with pneumatic actuator BA175-40-D0-A

Ball valve with pneumatic actuator Series BA175-D; ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 4.71 Kg
Short Itemnumber: BA17540D0A
https://www.stasto.pl/web/image/product.template/127132/image_1920?unique=f96ddcc

ball valve with pneumatic actuator series BA175-D; ATEX II 2 G/D; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FFKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAD063

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 40 mm
Length 116 mm
Design ATEX
Pressure range 0...25 bar
DN 40 mm
Length 116 mm
Design ATEX
Ball valve made of stainless steel BA175-40-L
BA175-40-L x 1.0 Pcs
Ball valve made of stainless steel BA175-40-L
Ball valve made of stainless steel Series BA175-L; ATEX II 2 G/D; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Medium temperature -20...+160°C; Fire-safe/ATEX-Antistatic design; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
RI3031 x 1.0 Pcs
RI3031
Mounting bracket; F07/F05-F05; Bolt 14-10
