BA152-20-S0-A

BA152-20-S0-A

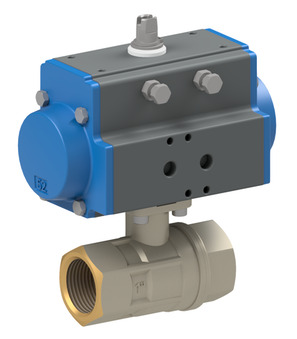

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 138mm; Actuator PAS0635; ATEX zone 1 and 21

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.96 Kg
Short Itemnumber: BA15220S0A
https://www.stasto.pl/web/image/product.template/147784/image_1920?unique=3970b0b

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-40bar; length 138mm; actuator PAS0635; ATEX zone 1 and 21

3.198,80 zł 3198.8 PLN 3.198,80 zł

cena na zapytanie

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
2530-2"-A x 1.0
2530-2"-A
Ball valve made of brass; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; Without hand lever; Connection G 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 138mm; ATEX
Add to Cart
Pneumatic actuator PAS0635
PAS0635 x 1.0
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
