BA152-114-S0-A

BA152-114-S0-A

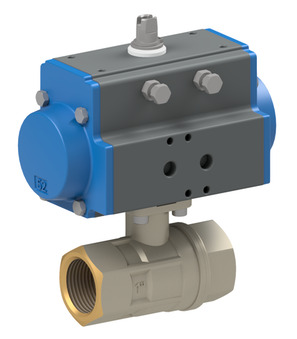

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-40bar; Length 102mm; Actuator PAS0525; ATEX-design

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.313 Kg
Short Itemnumber: BA152114S0A
https://www.stasto.pl/web/image/product.template/145635/image_1920?unique=3970b0b

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/4"; nominal diameter 32mm; pressure range 0-40bar; length 102mm; actuator PAS0525; ATEX-design

1.917,50 zł 1917.5 PLN 1.917,50 zł

cena na zapytanie

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
2530-11/4"-A x 1.0
2530-11/4"-A
Ball valve made of brass; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; Without hand lever; Connection G 11/4"; Nominal diameter 32mm; Pressure range 0-40bar; Length 102mm; ATEX
Add to Cart
Pneumatic actuator PAS0525
PAS0525 x 1.0
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
