BA144-80-S0

BA144-80-S0

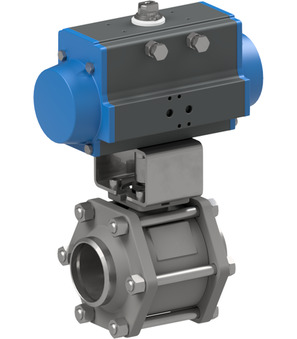

Ball valve with pneumatic actuator Series BA144-S; Butt weld ends; Three-parts type; Body, Ball 1.4401; Seals PTFE-reinforced/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Pressure range 0-16bar; Length 180mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 28.12 Kg
Short Itemnumber: BA14480S0
https://www.stasto.pl/web/image/product.template/131041/image_1920?unique=3970b0b

ball valve with pneumatic actuator series BA144-S; butt weld ends; three-parts type; body, ball AISI 316; seals PTFE-reinforced/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; pressure range 0-16bar; length 180mm; actuator PAS1255

8.958,40 zł 8958.4 PLN 8.958,40 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BA144-80-L
    BA144-80-L x 1.0
    BA144-80-L
    Ball valve made of stainless steel Series BA144-L; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/EPDM; Medium temperature -30...+160°C; Nominal diameter 80mm; Pressure range 0-16bar; Length 180mm
    Add to Cart
    Pneumatic actuator PAS1255
    PAS1255 x 1.0
    Pneumatic actuator PAS1255
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
    Add to Cart
