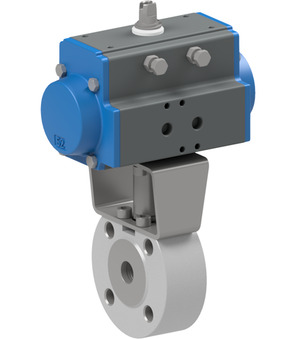

Ball valve with pneumatic actuator BA137-65-D0-A

Ball valve with pneumatic actuator BA137-65-D0-A

Ball valve with pneumatic actuator Series BA137; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Length 103mm; Actuator PAD085

Intrastat No.: 84818081
Country of origin: Italy
Weight: 15.33 Kg
Short Itemnumber: BA13765D0A
https://www.stasto.pl/web/image/product.template/121722/image_1920?unique=477d5fc

ball valve with pneumatic actuator series BA137; ATEX II 2 G/D; flange PN16, full bore; body, ball AISI 316; seals PTFE/FKM; pressure range 0...16bar; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 65mm; length 103mm; actuator PAD085

6.028,90 zł 6028.9 PLN 6.028,90 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Design
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 65 mm
Length 103 mm
Design ATEX
Pressure range 0...16bar
DN 65 mm
Length 103 mm
Design ATEX
Flanged ball valve BA049-65-L-A
BA049-65-L-A x 1.0 Pcs
Flanged ball valve BA049-65-L-A
Flanged ball valve Series BA049-A; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Length 103mm
Pneumatic actuator PAD085
PAD085 x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
RI3003 x 1.0 Pcs
RI3003
Mounting bracket; F07/F07; 17-14
