Ball valve with pneumatic actuator Series BA137 Store

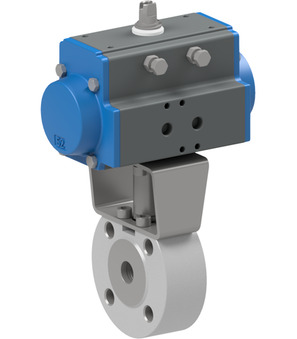

Ball valve with pneumatic actuator BA137-100-D0-A

Name: Ball valve with pneumatic actuator BA137-100-D0-A
Brand: STASTO
SKU: BA137-100-D0-A
Price: 2325.0 PLN
Availability: InStock

Ball valve with pneumatic actuator Series BA137; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Length 152mm; Actuator PAD100

Intrastat No.: 84818081
Country of origin: Italy
Weight: 28.77 Kg
Short Itemnumber: BA137100D0A

ball valve with pneumatic actuator series BA137; ATEX II 2 G/D; flange PN16, full bore; body, ball AISI 316; seals PTFE/FKM; pressure range 0...16bar; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 100mm; length 152mm; actuator PAD100

2.325,00 zł 2325.0 PLN 2.325,00 zł

DN
- 100 mm
Length
- 152 mm
Design
- ATEX
Actuator
- PAD100

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	100 mm
Length	152 mm
design
Design	ATEX
characteristics
Actuator	PAD100

BA049-100-L-A x 1.0

Flanged ball valve BA049-100-L-A

Flanged ball valve Series BA049-A; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Length 152mm

Add to Cart

PAD100 x 1.0

Pneumatic actuator PAD100

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm

Add to Cart

RI3004 x 1.0
