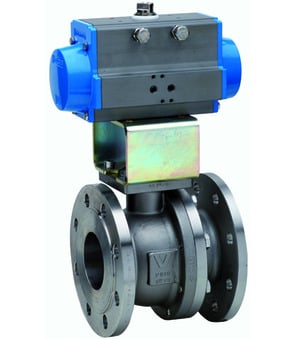

Flanged ball valve with pneumatic actuator BA132-65-D0-A

Name: Flanged ball valve with pneumatic actuator BA132-65-D0-A
Brand: STASTO
SKU: BA132-65-D0-A
Price: 8183.1 PLN
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA132; ATEX II 2 G/D; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body 1.4408; Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0...40bar; Flange PN40; Length 170mm; Actuator PAD100

Intrastat No.: 84818081
Country of origin: Italy
Weight: 21.59 Kg
Short Itemnumber: BA13265D0A

flanged ball valve with pneumatic actuator series BA132; ATEX II 2 G/D; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body AISI 316; ball AISI 316; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 65mm; pressure range 0...40bar; flange PN40; length 170mm; actuator PAD100

8.183,10 zł 8183.1 PLN 8.183,10 zł

excl. tax

DN
- 65 mm
Length
- 170 mm
Flange
- PN40
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAD100

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...40 bar
DN	65 mm
Flange	PN40
Length	170 mm

All specifications (5)

Specifications
Spare Parts

Pressure range	0...40 bar
DN	65 mm
Flange	PN40
Length	170 mm
Design	ATEX

BA132-65-LLD-A x 1.0 Pcs

Flanged ball valve BA132-65-LLD-A

Flanged ball valve Series BA132; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals RPTFE/PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 80mm; Pressure range 0-40bar; Flange PN40; Length 170mm

PAD100 x 1.0 Pcs

Pneumatic actuator PAD100

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm

RI3522 x 1.0 Pcs
