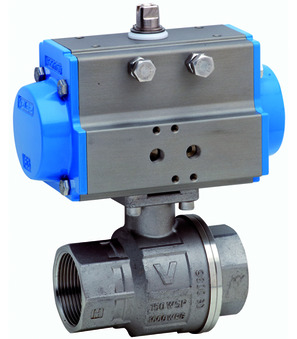

Ball valve with pneumatic actuator BA081-212-D0-A

Ball valve with pneumatic actuator BA081-212-D0-A

Ball valve with pneumatic actuator Series BA081-D0-A; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0…25bar; Length 160mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 8.851 Kg
Short Itemnumber: BA081212D0A
https://www.stasto.pl/web/image/product.template/161840/image_1920?unique=33b4040

ball valve with pneumatic actuator series BA081-D0-A; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 21/2"; nominal diameter 65mm; pressure range 0…25bar; length 160mm; actuator PAD075

4.512,20 zł 4512.2 PLN 4.512,20 zł

cena na zapytanie

excl. tax
  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
Female thread RP 2 1/2"
DN 65 mm
Length 160 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
Female thread RP 2 1/2"
DN 65 mm
Length 160 mm
Design ATEX

BA081-212-D0-A

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA081-212-B-A
BA081-212-B-A x 1.0 Pcs
Ball valve made of stainless steel BA081-212-B-A
Ball valve made of stainless steel Series BA081; ATEX II 2 G/D; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 21/2"; Nominal diameter 65mm; Pressure range 0...25bar; Length 160mm
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
