BA081-12-0D
BA080-34-T1
BA080-34-T1
2.067,80 zł
2.067,80 zł
MSV04-M20X1,5-W-3K
MSV04-M20X1,5-W-3K
cena na zapytanie

BA081-12-0D

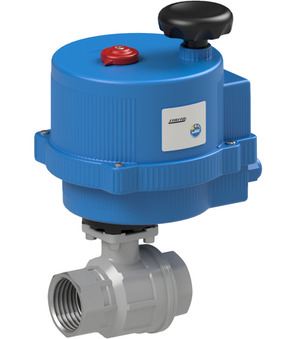

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 1/2"; DN 15mm; Pressure range 0-64bar; Length 67mm; Operating time 10s; Voltage 12VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.703 Kg
Short Itemnumber:BA081120D
https://www.stasto.pl/web/image/product.template/126659/image_1920?unique=4c5ab8e

ball valve with electrical actuator; female thread; body, ball AISI 316; seals PTFE/FKM; medium temperature 0...+100°C; RP 1/2"; DN 15mm; pressure range 0-64bar; length 67mm; operating time 10s; voltage 12VAC/DC

1.900,40 zł 1900.4 PLN 1.900,40 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    Ball valve made of stainless steel BA081-12-B
    BA081-12-B x 1.0
    Ball valve made of stainless steel BA081-12-B
    Ball valve made of stainless steel Series BA081; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 1/2"; Nominal diameter 15mm; Pressure range 0...64bar; Length 67mm
    Add to Cart
    Electrical actuator VB015-L-12
    VB015-L-12 x 1.0
    Electrical actuator VB015-L-12
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 12VAC/DC; Protection class IP65
