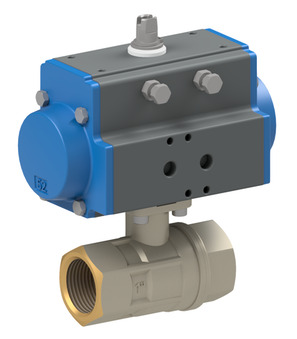

BA080-30-D0-2C

BA080-30-D0-2C

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3"; nominal diameter 80mm; pressure range 0-16bar; length 188mm; actuator PAD063; incl. test report 2.2

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.96 Kg
Short Itemnumber: BA08030D02C
https://www.stasto.pl/web/image/product.template/218247/image_1920?unique=3970b0b

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3"; nominal diameter 80mm; pressure range 0-16bar; length 188mm; actuator PAD063; incl. test report 2.2

4.554,40 zł 4554.4 PLN 4.554,40 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 3"
DN 80 mm
Length 188 mm
pressure
Pressure range 0...16 bar
characteristics
Actuator PAD063
Ball valve made of brass 2500-3"
2500-3" x 1.0
Ball valve made of brass 2500-3"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0…16bar; Length 188mm; Flange ISO5211 F07; Square 14mm
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
