BA080-30-D0-03

BA080-30-D0-03

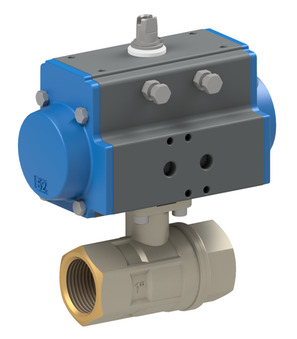

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0-16bar; Length 188mm; Actuator PAD085; Oversized

Intrastat No.: 84818081
Country of origin: Italy
Weight: 10.21 Kg
Short Itemnumber: BA08030D003
https://www.stasto.pl/web/image/product.template/147178/image_1920?unique=3970b0b

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3"; nominal diameter 80mm; pressure range 0-16bar; length 188mm; actuator PAD085; oversized

5.019,10 zł 5019.1 PLN 5.019,10 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of brass 2500-3"
    2500-3" x 1.0
    Ball valve made of brass 2500-3"
    Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0…16bar; Length 188mm; Flange ISO5211 F07; Square 14mm
    Add to Cart
    Pneumatic actuator PAD085
    PAD085 x 1.0
    Pneumatic actuator PAD085
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
