BA080-30-0R

BA080-30-0R

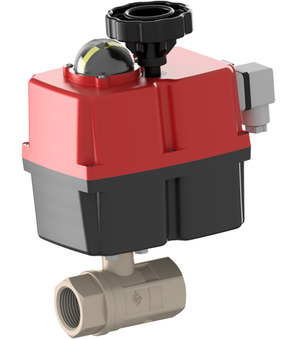

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 3"; DN 80mm; Pressure range 0-16bar; Length 188mm; Operating time 13s; Voltage 24...240VAC / 24...135VDC; Protection class IP67; LED

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.7 Kg
Short Itemnumber: BA080300R
https://www.stasto.pl/web/image/product.template/138070/image_1920?unique=224f99a

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM; medium temperature 0...+100°C; RP 3"; DN 80mm; pressure range 0-16bar; length 188mm; operating time 13s; voltage 24...240VAC / 24...135VDC; protection class IP67; LED

6.278,40 zł 6278.4 PLN 6.278,40 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-16bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0-16bar
Brand STASTO

BA080-30-0R

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
Ball valve made of brass 2500-3"
2500-3" x 1.0 Pcs
Ball valve made of brass 2500-3"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0…16bar; Length 188mm; Flange ISO5211 F07; Square 14mm
J4C55-0H13-Q14 x 1.0 Pcs
Electrical actuator J4C55-0H13-Q14
Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 55Nm; Operating time 13s; Flange ISO5211 F05/F07-star 14mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67
