BA080-212-0R

BA080-212-0R

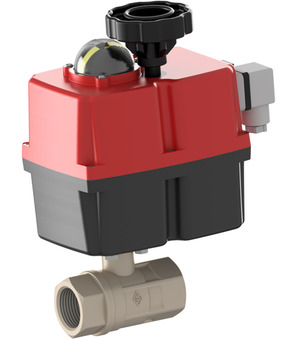

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 21/2"; DN 65mm; Pressure range 0-25bar; Length 165mm; Operating time 13s; Voltage 24...240VAC / 24...135VDC; Protection class IP67; LED

Intrastat No.: 84818081
Country of origin: Spain
Weight: 6.5 Kg
Short Itemnumber: BA0802120R
https://www.stasto.pl/web/image/product.template/138069/image_1920?unique=224f99a

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM; medium temperature 0...+100°C; RP 21/2"; DN 65mm; pressure range 0-25bar; length 165mm; operating time 13s; voltage 24...240VAC / 24...135VDC; protection class IP67; LED

5.225,90 zł 5225.9 PLN 5.225,90 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-25bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0-25bar
Brand STASTO

BA080-212-0R

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
Ball valve made of brass 2500-21/2"
2500-21/2" x 1.0 Pcs
Ball valve made of brass 2500-21/2"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0…25bar; Length 165mm; Flange ISO5211 F07; Square 14mm
J4C55-0H13-Q14 x 1.0 Pcs
Electrical actuator J4C55-0H13-Q14
Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 55Nm; Operating time 13s; Flange ISO5211 F05/F07-star 14mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67
