BA080-20-S0

BA080-20-S0

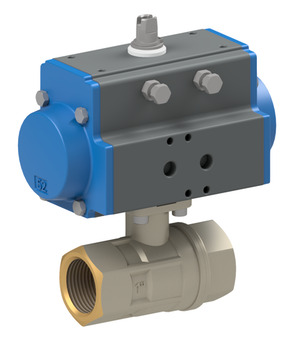

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 138mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.9 Kg
Short Itemnumber: BA08020S0
https://www.stasto.pl/web/image/product.template/161098/image_1920?unique=87fb56f

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-40bar; length 138mm; actuator PAS0635

2.571,80 zł 2571.8 PLN 2.571,80 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Pressure range 0-40bar
Brand STASTO
Ball valve made of brass 2500-2"
2500-2" x 1.0 Pcs
Ball valve made of brass 2500-2"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0...40bar; Length 138mm; Flange ISO5211 F05; Square 11mm
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
