BA080-12-T0-02

BA080-12-T0-02

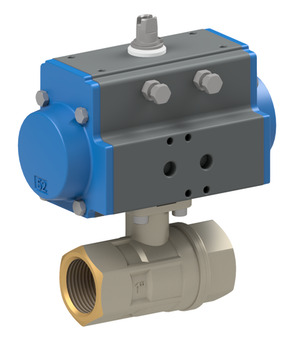

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-40bar; Length 67mm; Actuator PAS0525; Safety position NO; Actuator mounted 90° twisted

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.608 Kg
Short Itemnumber: BA08012T002
https://www.stasto.pl/web/image/product.template/176084/image_1920?unique=3970b0b

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0-40bar; length 67mm; actuator PAS0525; safety position NO; actuator mounted 90° twisted

1.170,40 zł 1170.4 PLN 1.170,40 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of brass 2500-1/2"-A
    2500-1/2"-A x 1.0
    Ball valve made of brass 2500-1/2"-A
    Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...40bar; Length 67mm; Flange ISO5211 F03; Square 9mm
    Add to Cart
    Pneumatic actuator PAS0525-B
    PAS0525-B x 1.0
    Pneumatic actuator PAS0525-B
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
    Add to Cart
